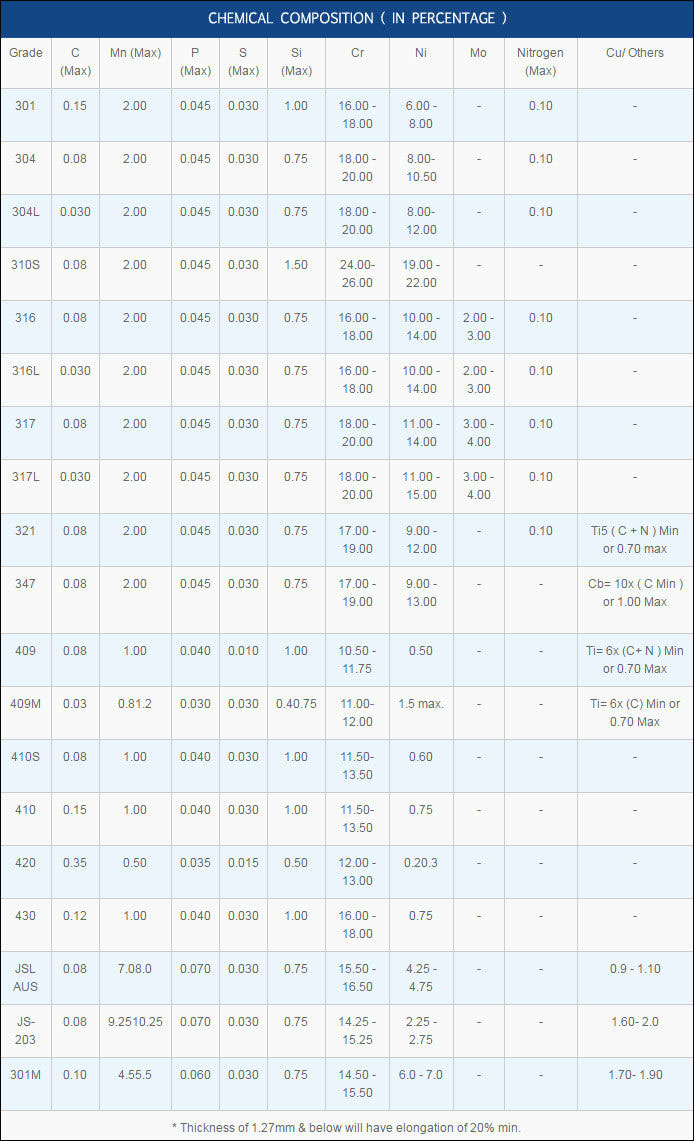

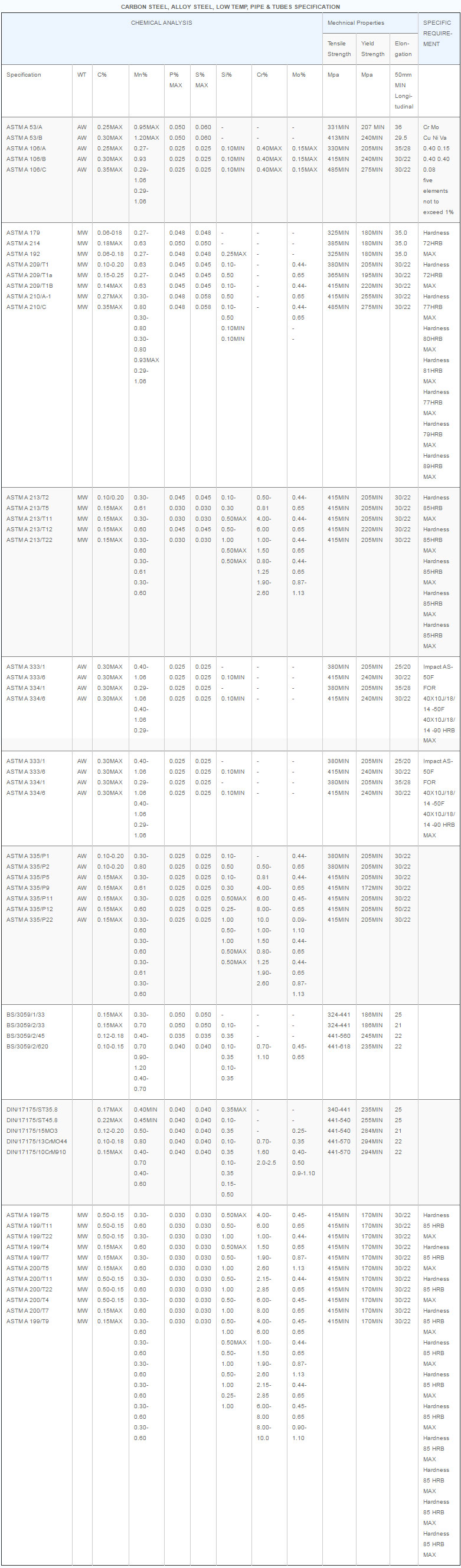

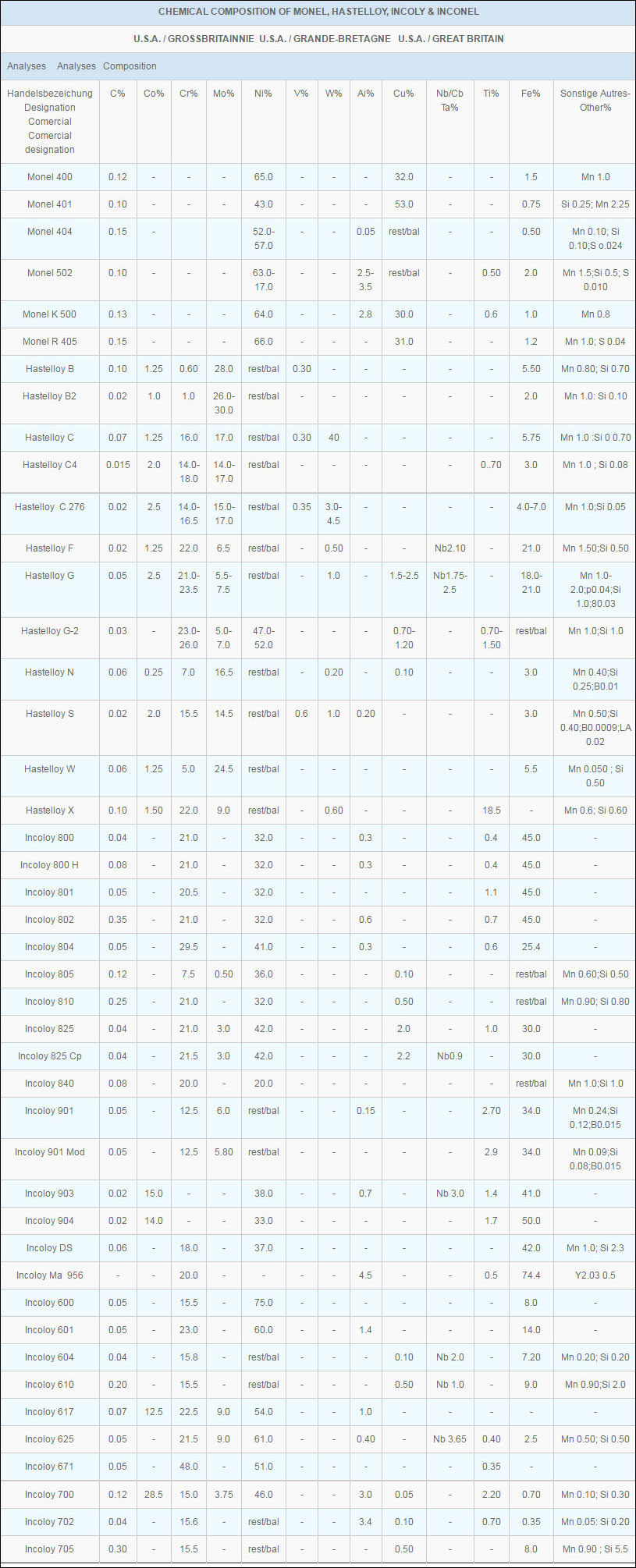

CHEMICAL COMPOSITION

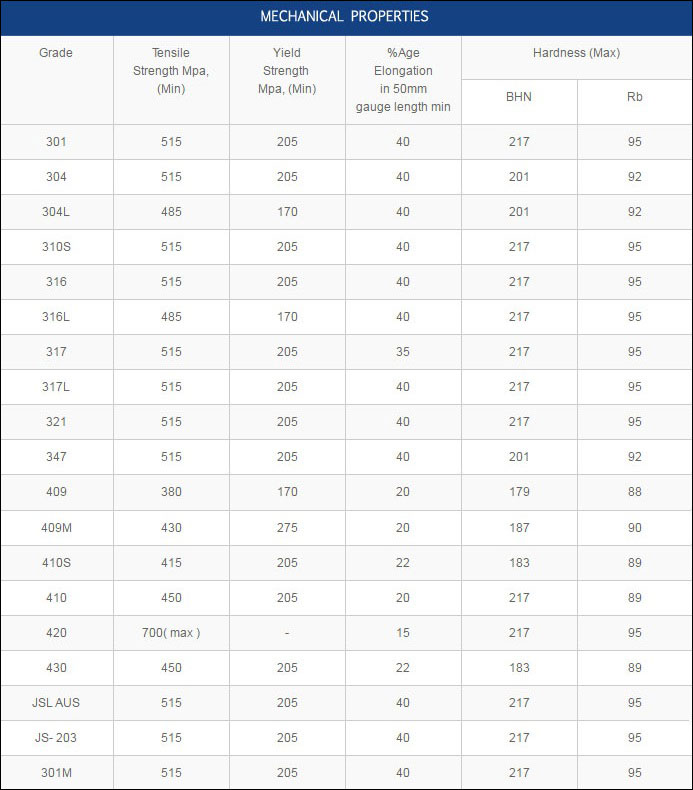

MECHANICAL COMPOSITION

PIPE & TUBES SPECIFICATION
CARBON STEEL, ALLOY STEEL, LOW TEMP, PIPE & TUBES SPECIFICATION

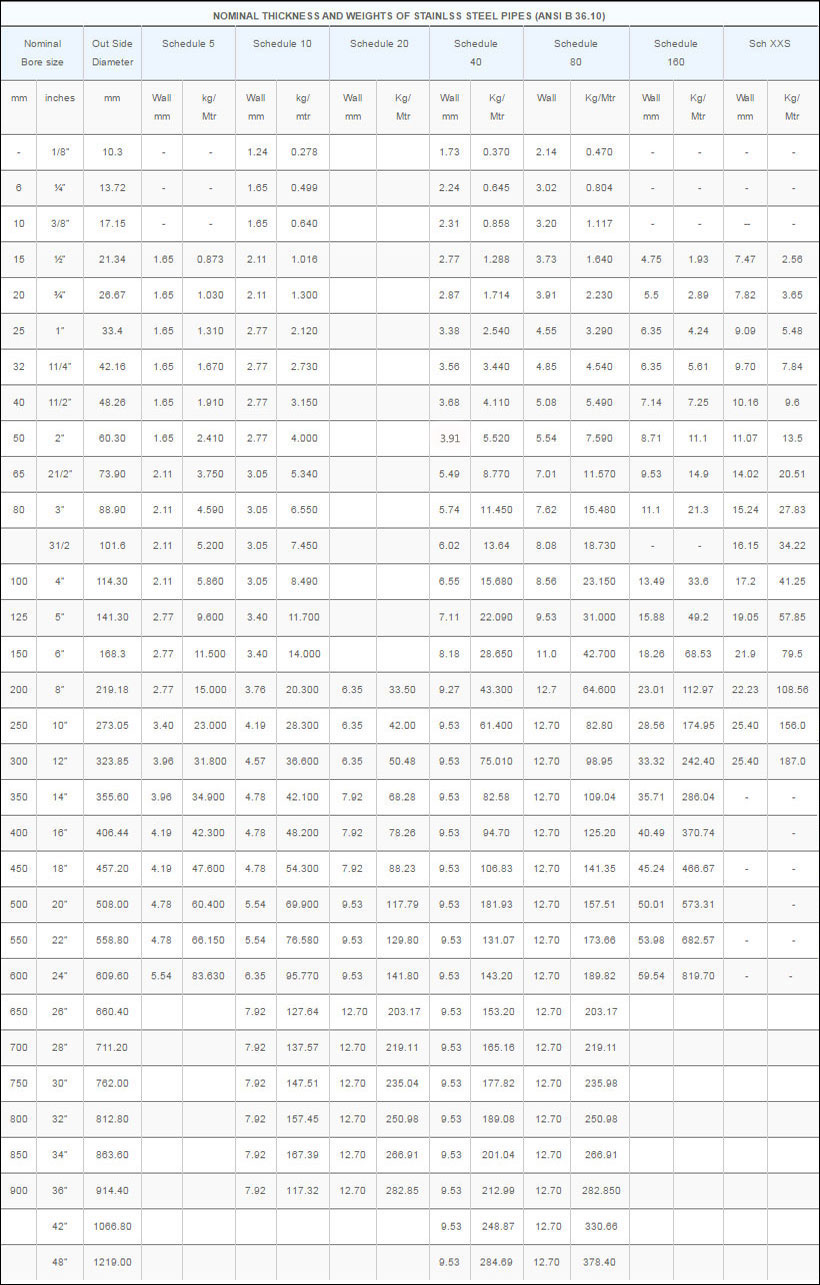

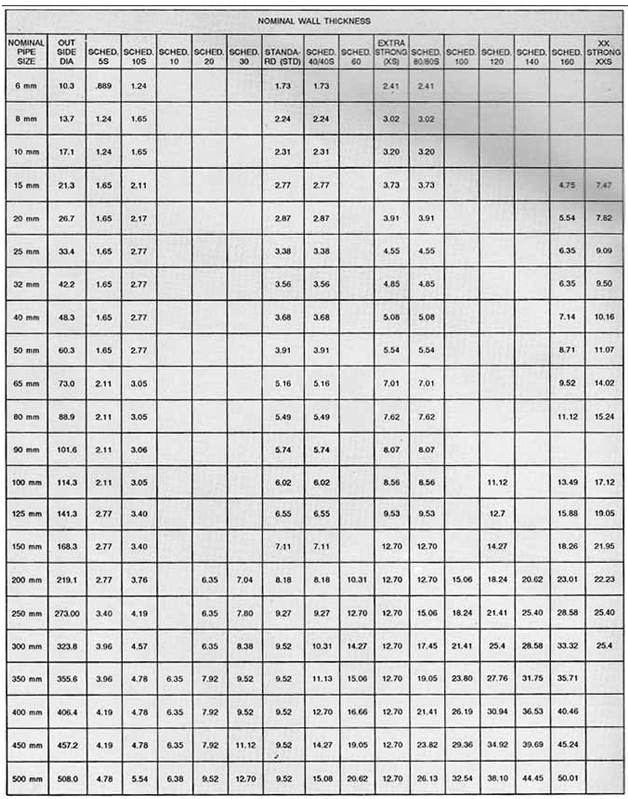

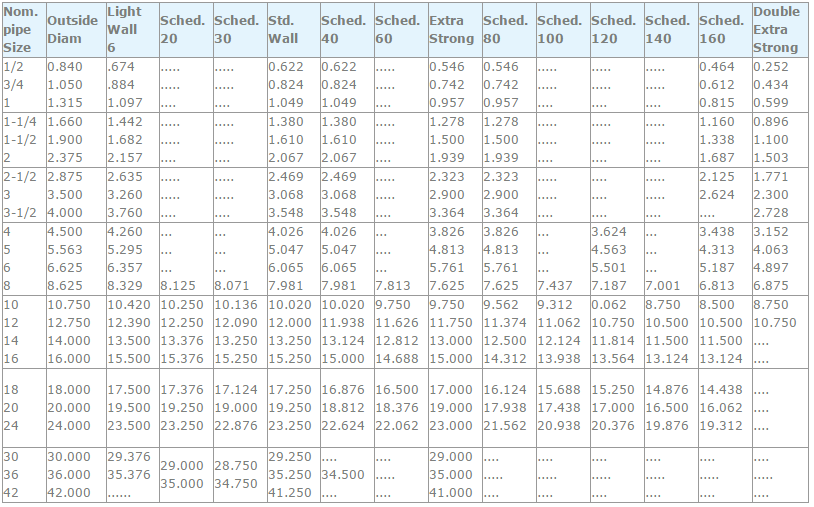

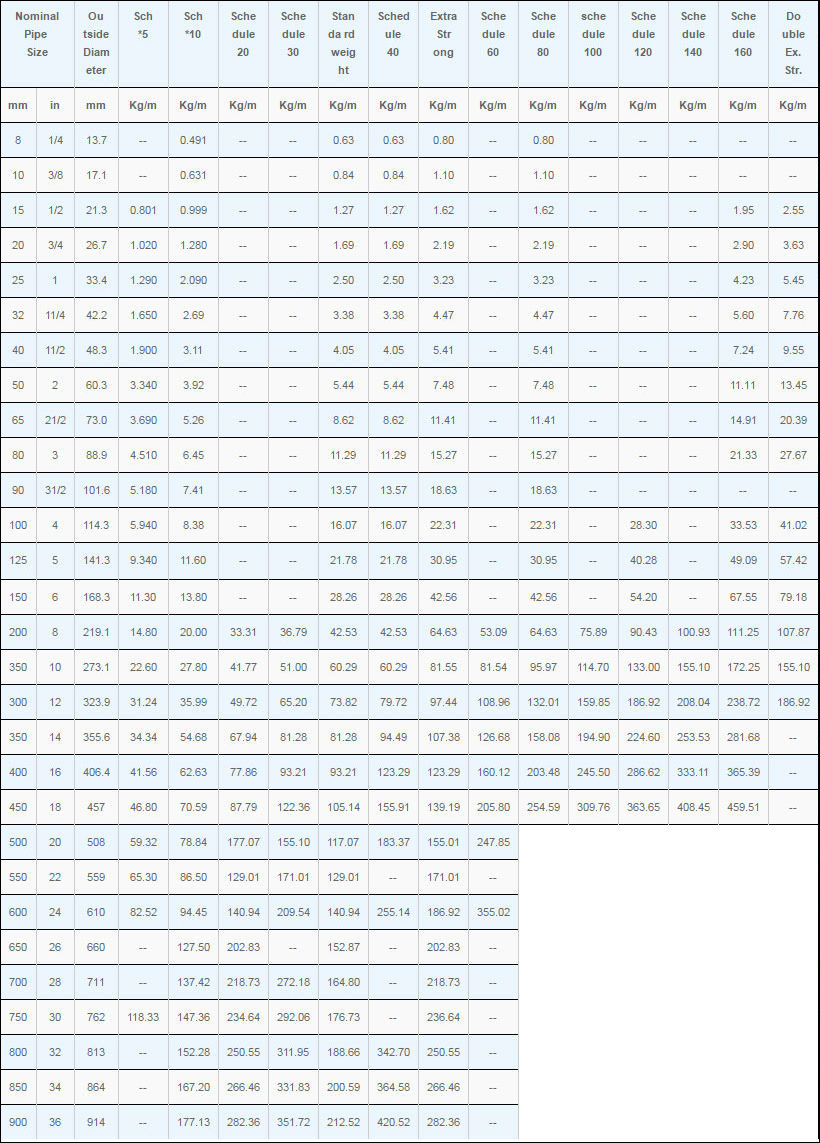

WEIGHT & DIMENSIONS OF SCHEDULE PIPE
Weight & Dimensions of Schedule Pipe

LINE PIPE WEIGHT
Line Pipe Weight

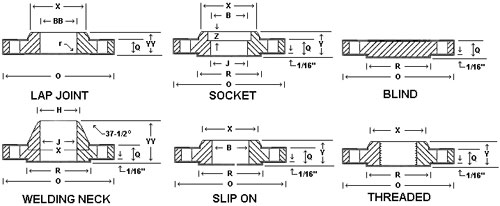

FLANGES DIMENSIONS

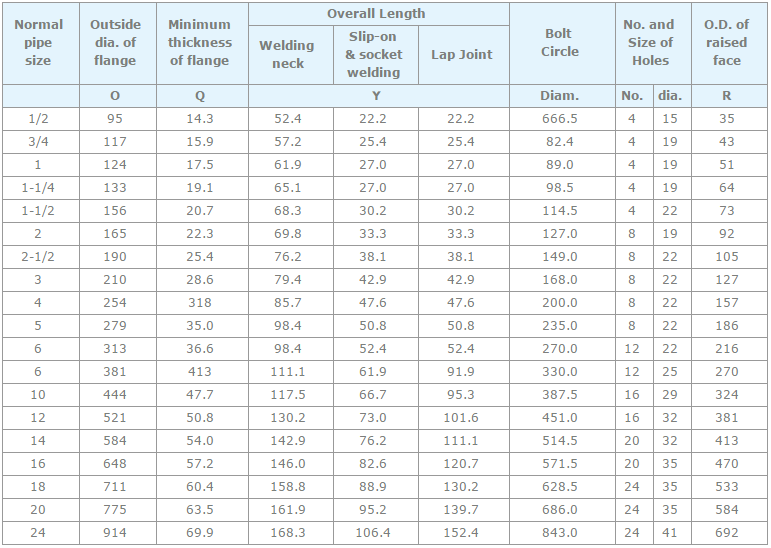

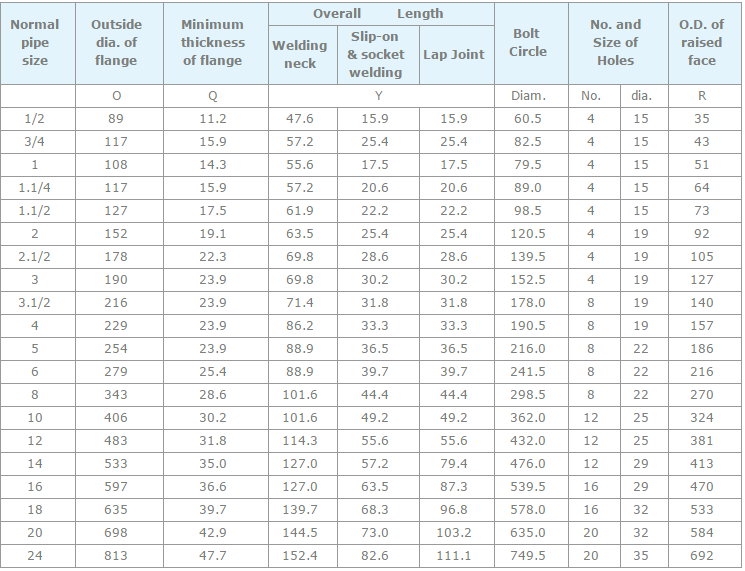

150 LB. FLANGES

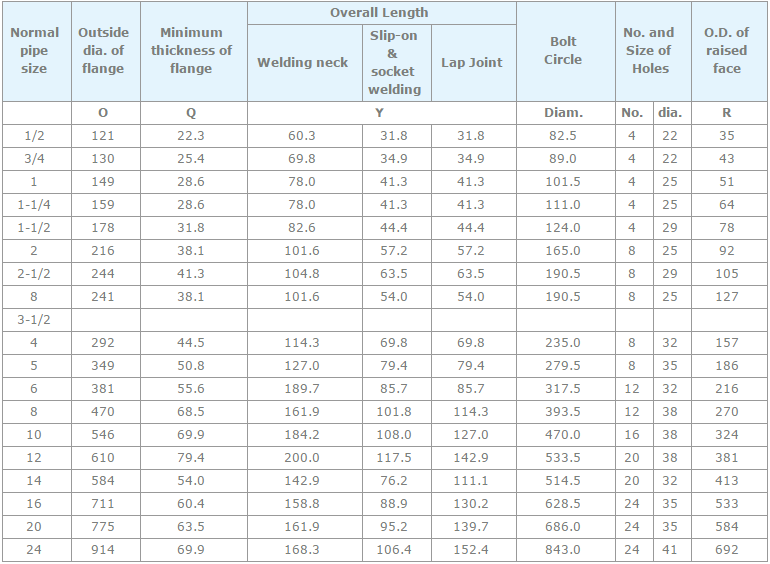

300 LB. FLANGES

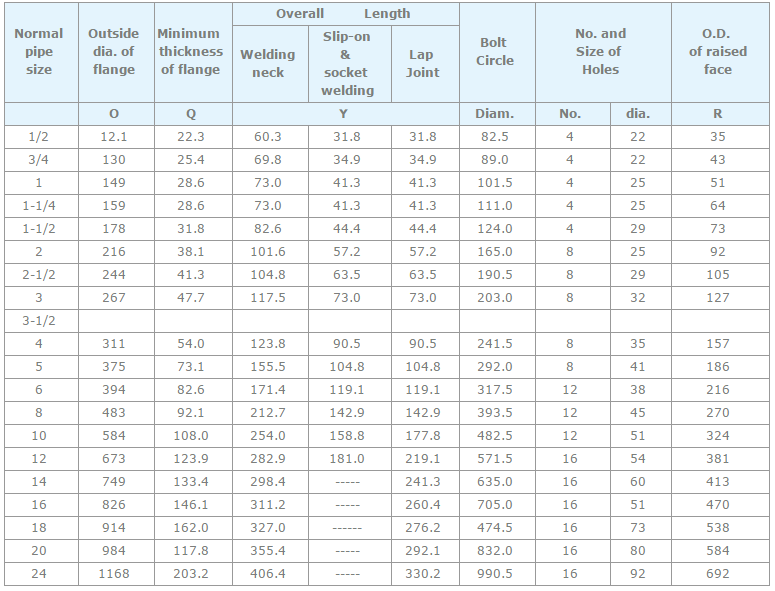

600 LB. FLANGES

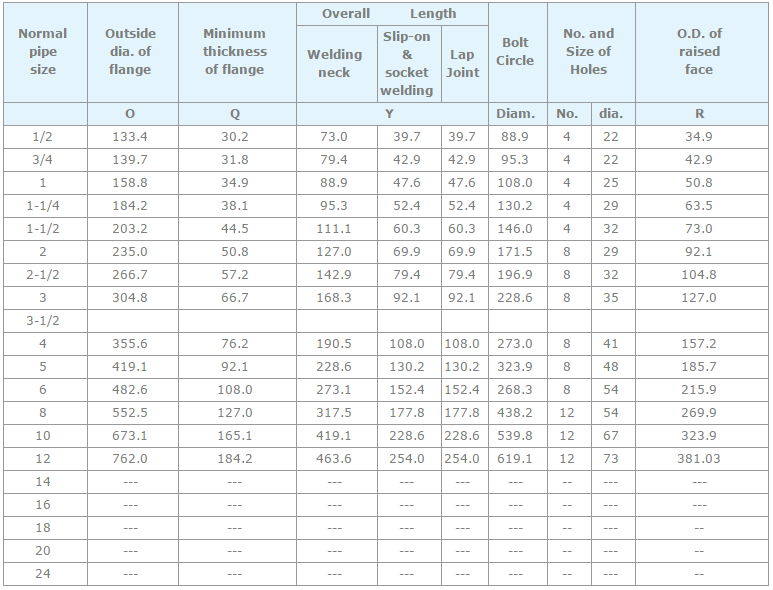

900 LB. FLANGES

1500 LB. FLANGES

2500 LB. FLANGES

WELDING NECK FLANGE BORES

DIN 2527

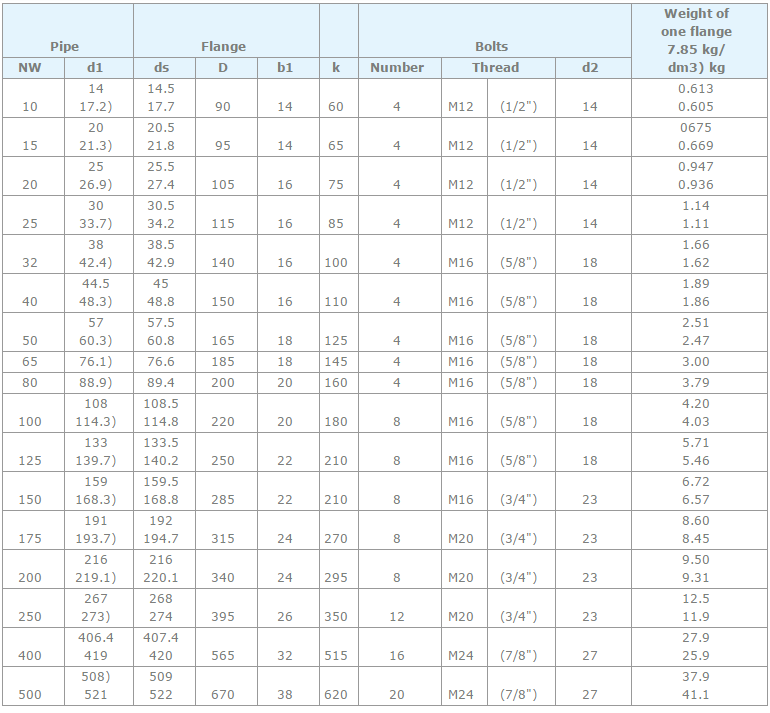

DIN 2576 FLANGES

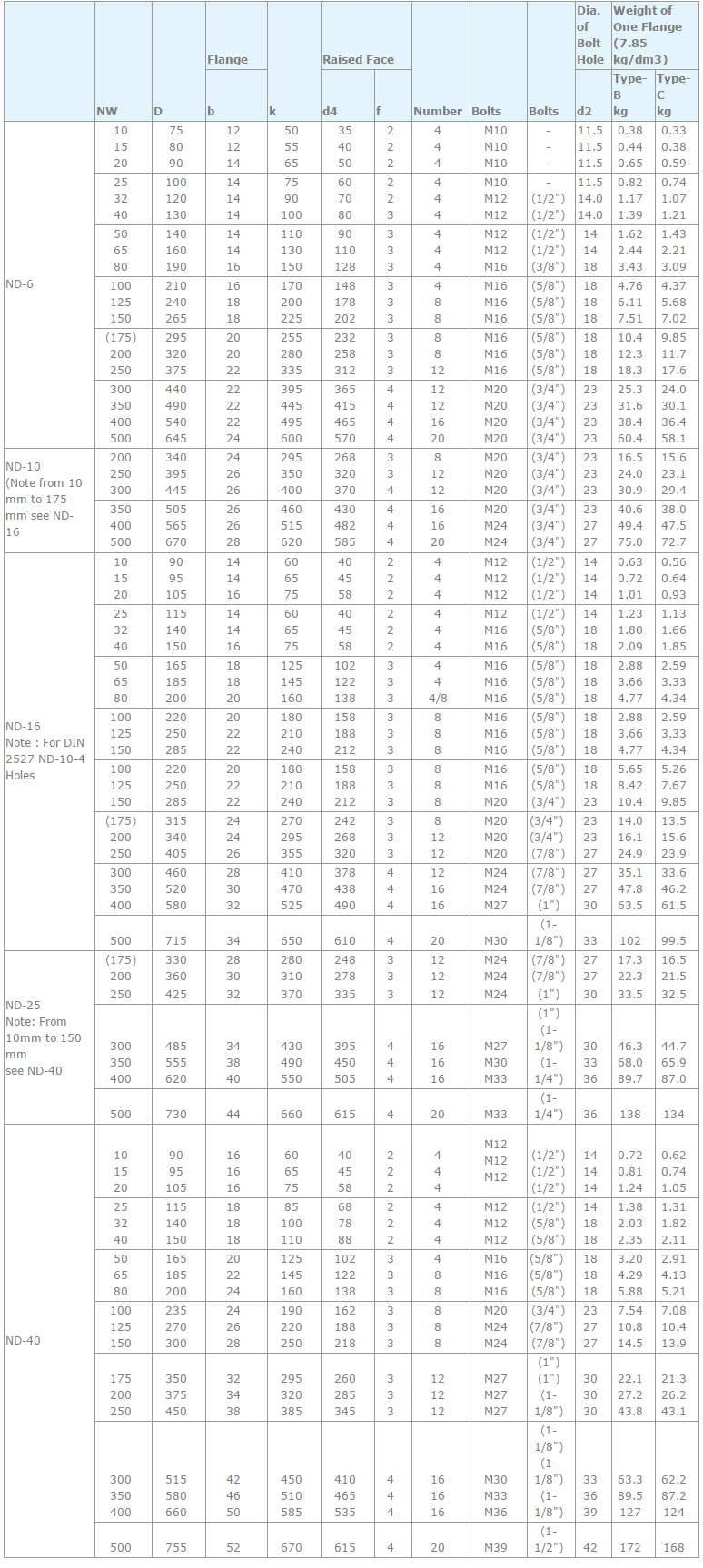

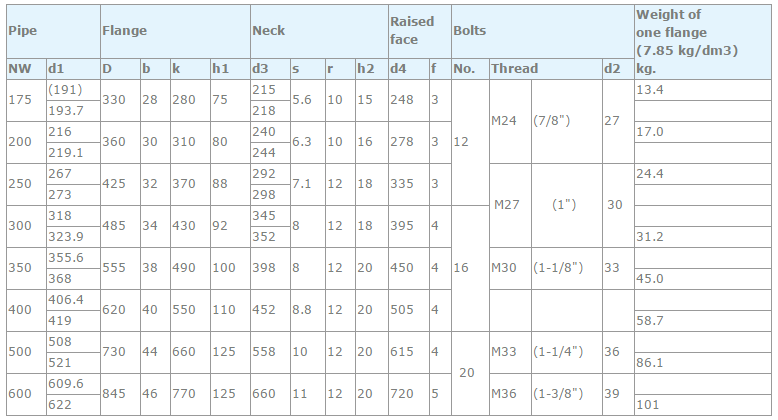

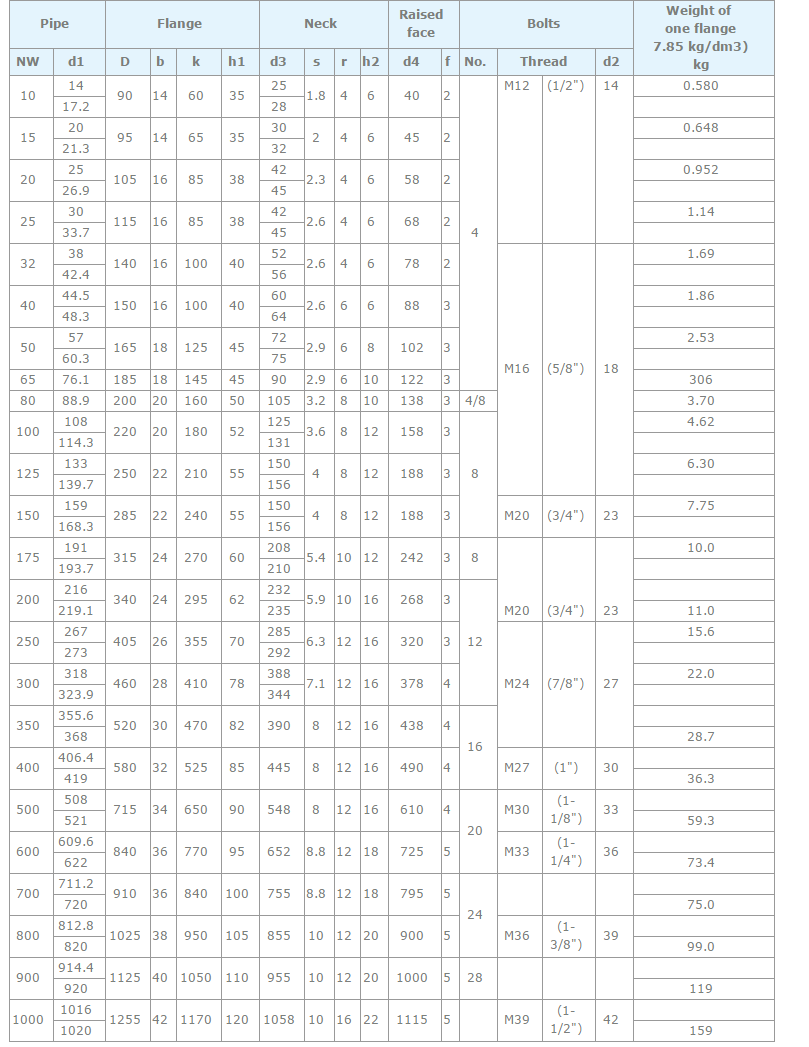

DIN 2632 WELDING NECK FLANGES FOR NOMINAL PRESSURE 10

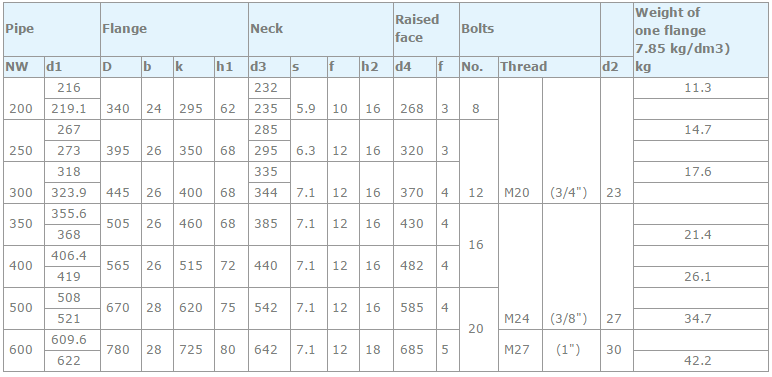

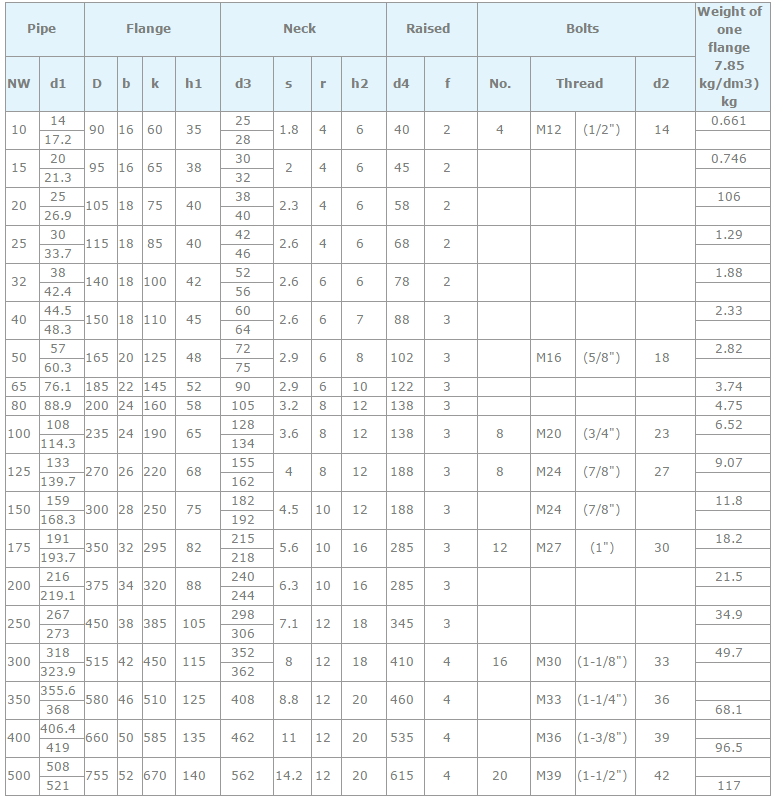

DIN 2633 WELDING NECK FLANGES NOMINAL PRESSURE 16

DIN 2634 WELDING NECK FLANGE NOMINAL PRESSURE 25

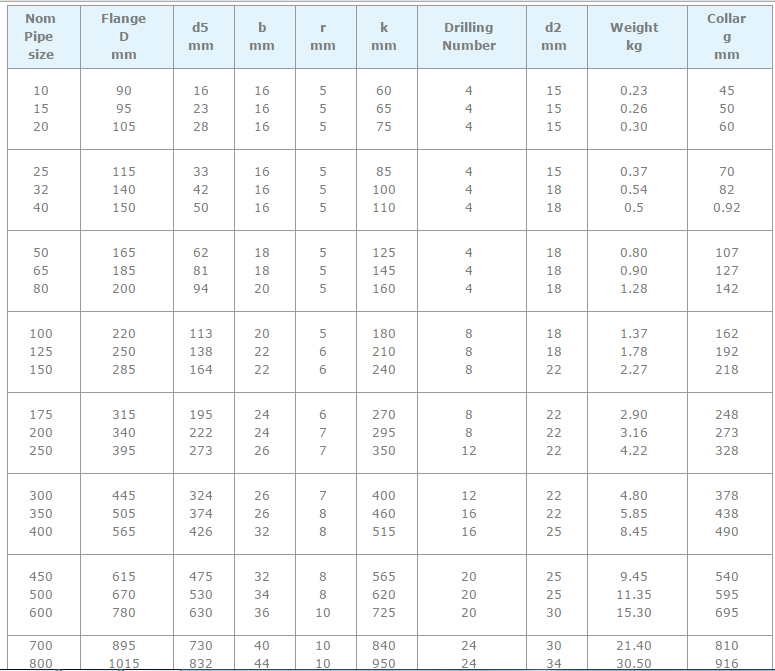

DIN 2642, DIN Connections LOOSE FLANGE FOR FLANGE COLLAR PN 10

DIN 2635 WELDING NECK FLANGES NOMINAL PRESSURE 40

FITTINGS DIMENSION

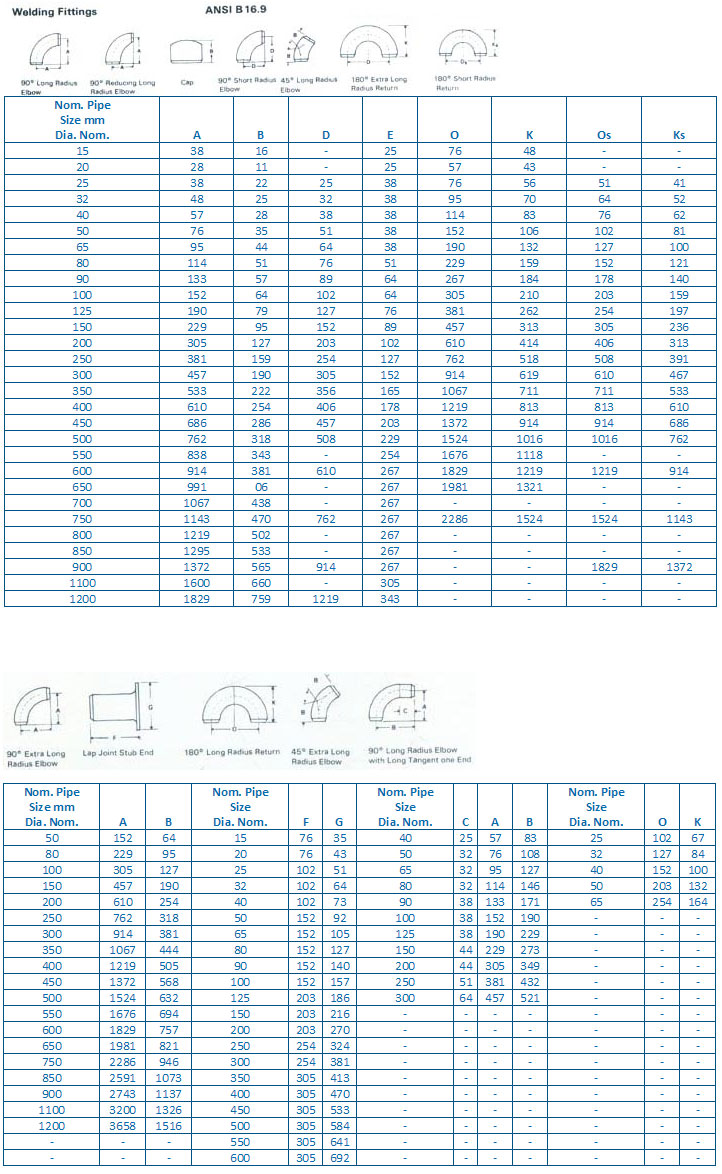

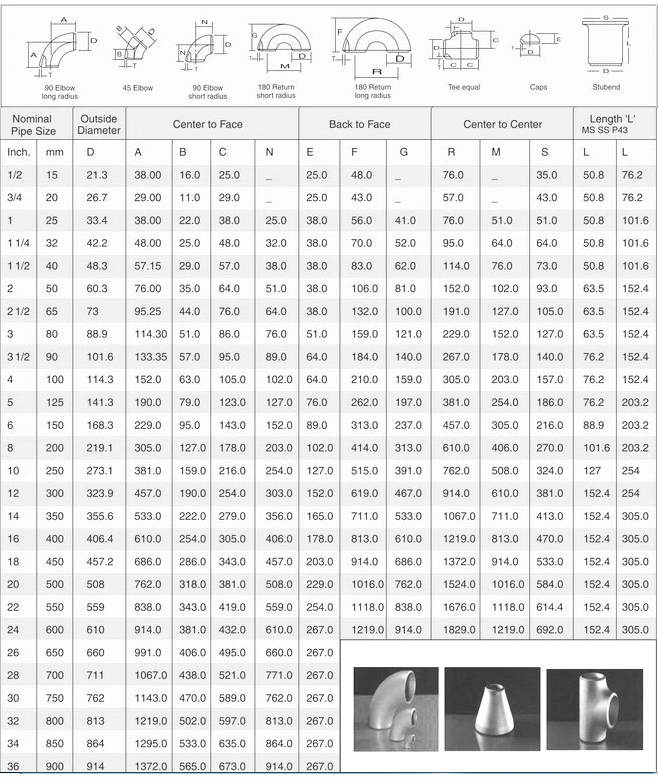

BUTTWELD FITTINGS DIMENSIONAL STANDARD ANSI B-16.9, B-16.28, MS SS P43

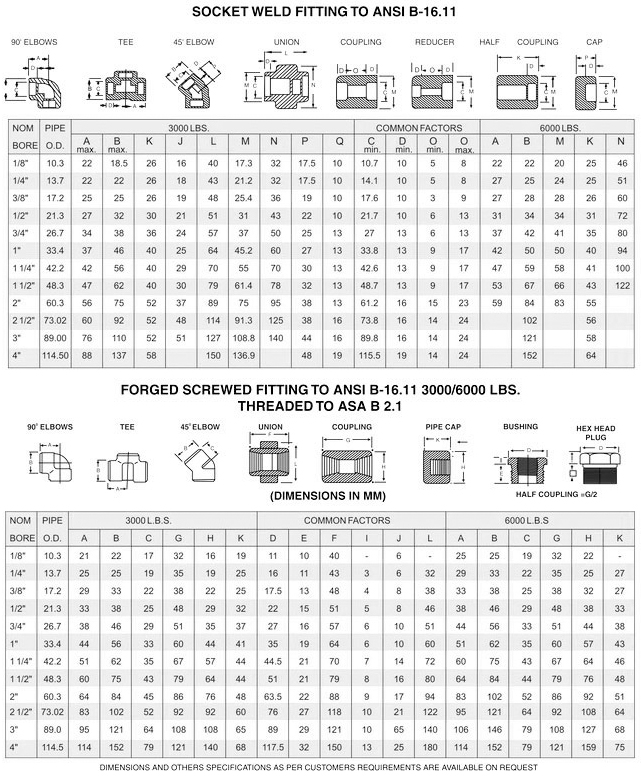

SOCKETWELD FITTINGS

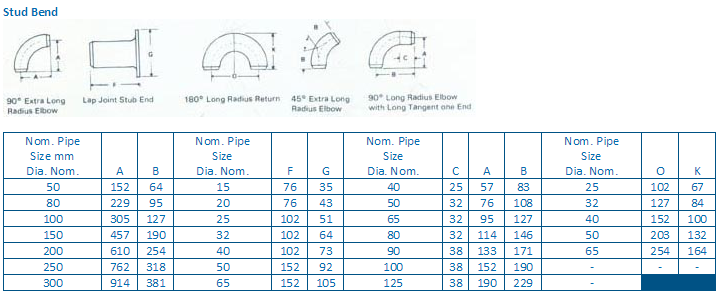

ELBOW

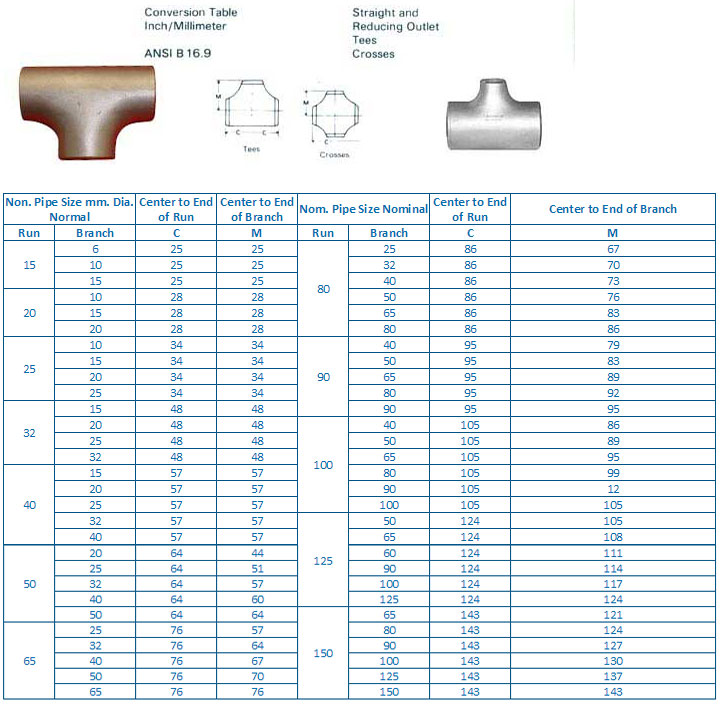

TEE

REDUCER

STUB END

PIPES
STAINLESS STEEL PIPE
Size: | 6mm to 500mm |
Thickness: | Sch 5, 10, 40 |
Specification: | 202, 304, 304L, 304H, 316, 316L, 316Ti, 321, 321H, 317, 317L, 310, 310S, 409, 410, 420, 430 |

SEAMLESS PIPE
Size: | 1/4" NB TO 24" NB IN Sch 40,60,80,120,160 & XXS. (Carbon steel) |
Carbon Steel: | ASTM A 53, A 106, A 179, API 5L/5LX, BSS, 3059, 182, 806, 3601, 3602, DIN 17175. 2448 etc. |
Specifications |

NON-FERROUS METAL
Non-Ferrous Metal

WEIGHT FORMULA
Weight Formula
- Weight of Stainless Steel Pipes & Tubes
OD(mm)-W.T. (mm) x W.T.(mm)x0.02466=Kg.per Mtr. - Sheet Width Required for rolled and welded pipes
O.D.(mm) - THK(mm) x 3.14=SheetWidth - Weight of Stainless Steel Sheets
Length (mtr.) x Wdth(mtr.) x Thk(mm)x8=Kg Per Sheet - Weight of Stainless Steel Circle & Blanks
OD(mm) x OD>(mm) x Thk(mm)/160/1000=Kg Per Pcs. - Weight of Stainless Steel Rounds
Dia.(mm)xdia.(mm) x 0.00623=PerMtr. - Weight of Stainless Steel Hexagonal Rods
Dia.(mm)xDia.(mm) x 0.00679=PerMtr. - Weight of Stainless Steel Square Bars
Dia.(mm)xDia.(mm) x 0.00787=PerMtr. - Weight of Carbon Steel Pipes & Tubes
Dia.(mm)-W.T.(mm) XW.T.(mm) x 0.02466=Kg.PerMtr. - Weight of Carbon Steel Sheets & Plates
Length (mtr.) x Wdth(mtr.) x Thk(mm) x 7.85=Kg Per Sheet - Weight of Copper Pipes
OD(mm)-W.T. (mm) X W.T.(mm) x 0.0256=Kg.per Mtr. - Weight of Lead Pipes(appro.)
OD(mm)-W.T. (mm) XW.T.(mm) x 0.0345=per Mtr. - Weight of Lead Sheets(appro.)
Length (mtr.) XWidth(mtr.) XThk(mm) x 11.2=Kg Per Sheet - Weight of Alluminium Pipes(appro.)
OD(mm)-W.T. (mm) XW.T.(mm) x 0.0082=Kg per Mtr. - Weight of Alluminium Sheets(appro.)
Length (mtr.) X Width(mtr.) X Thk(mm) x 2.66=Kg Per Sheet
Tensile Strength Conversion Table
- Kg/mm2 x 9.81 = N/mm2=MPa
- PSi x 0.0007 = Kg/mm2
- KSi x 1000 = PSi
- Kg/mm2 x 1.422 = KSi
